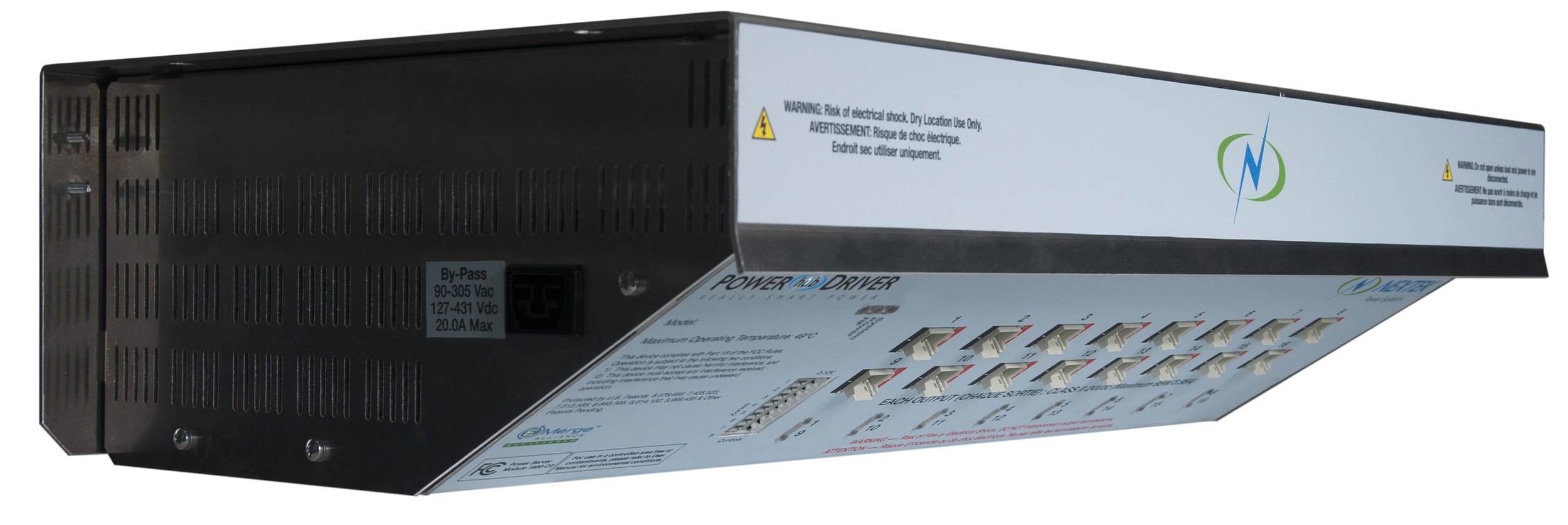

PHD: Power Hub Driver


The Power hub Driver is the next generation of Nextek's flagship product. It provides 16 fully controllable channels that provide up to 1600 watts of low voltage power output.











Due to ever changing Building and Energy Codes, power and lighting systems are undergoing an industry wide transformation that requires components to be interactive, responsive, efficient, reliable and in a word, SMART! The Power hub Driver provides the ideal platform to support this evolution of smart power technologies. From the fully integrated multiple communication options, to the significant array of built-in safety and performance features, the PhD can support a wide assortment of highly efficient DC powered fixtures and loads within buildings of today and tomorrow. The PhD also offers the unparalleled opportunity to provide full integration with a variety of renewable power sources. In short, the PhD is ‘Really Smart Power’.

Need Help or pricing? Call 1-313-887-1321

Features           Tech Specs        Download Spec sheet





PHD Features


PHD Features






  • Converts Class 1 AC (90-305Vac) or DC (127- 431Vdc) power to 16 individual Class 2 outputs to reduce installation costs
  • Modulates Class 2 output power to dim LED lighting to eliminate LED drivers in light fixtures (Not all models)
  • Integrated eight zone 0-10V dimming system to eliminate additional 0-10V dimming system (Not all models)
  • Integrated wired or wireless communication to simplified commissioning of control systems
  • Fan-less passive cooling for quiet long lasting operation
  • Saf-D-Grid Class 1 plug-in power cables which can be safety connected and disconnected under power.
  • State-of-the-Art Class 2 connector system for robust, adjustable and cost-effect installations.
  • Each Class 2 output (aka Channel) has short circuit and over-power shut-down to protect low voltage installers
  • Designed to serviced as installed to quickly address issues from extreme power quality events.
  • Compatible with Nextek custom cable to have turn-key solution delivered to site
  • Compatible with Emerge LED light fixtures to ensure trouble-free installations
  • Compatible with High Resistance Mid-Point grounding systems to achieve safest Class 1 DC systems
  • Optional mounting brackets for installing unit on Armstrong DC FlexZone modular ceiling system
  • Optional color choices to compliment building aesthetics



PHD Tech Specs


PHD Tech Specs




  1. Dimensions (WXHXD): 23.5 X 5.8 X 13.6 in (597 X 147 X 345 mm)
  2. Weight: 32 lbs (20kg)
  3. Mounting Options: Hard mount to concrete ceiling, bracket mount to suspended ceiling, threaded rod, Wire rope hanging systems
  4. Input Voltage Range: 90-305Vac or 127-431Vdc
  5. Power Factor Correction: > 0.98 @ 115Vac, >0.93 @ 277Vac
